120KW PWHT Machine Air Cooled Induction Heat Treatment Equipment

DSP-120KW Digital Air Cooled Induction Heat Treament Machine

Features:

Using DSP and ARM full digital control circuit, the equipment has rich communication interface, support optical fiber,

Ethernet, RS485/233, Profibus, CAN and other industrial buses, CAN achieve remote control

1. 6 Channel Temperature system testing

2. Quick Heating: Reach the target temperature quickly!

3. More options for working mode: Time, temperature, Power,constant Power and so on. Can know the heating curve.

4. Full digital embedded control software, high heating accuracy, programmable control, can achieve remote monitoring and

remote control; Full Digital control, can shows heating time,heating power, heating current, Heating impedance, frequency and so on in the machine.

5. High temperature: the heating temperature can reach over 700C.

6. Industrial design, can calmly face a variety of complex working conditions, better compatibility, can cope with different sizes, different shapes, different specifications of large workpiece installation and disassembly, different size preheat and post welding application.

7. High safety, the product through strict safety test, leakage protection and other protective measures, to ensure the safety of the use process, will not cause harm to personnel and facilities;

8.The machine has transformer, more safety special for Heating

9. High reliability, large redundancy, high specification selection, to ensure continuous high-strength operation of equipment.

10. Air Cooled type, no need get water, easier to work different work site. More Stable compare with water cooled type.

11. IGBT type, Most Save electricity.

Parameters:

Advantage:

1. Easy to operate, can programme

2. High Waterproof.

3. Can bear high temperature, allow the max environment temperature

reach to 180C.

4. High safety.

5. Full digital

6. Anti-interference.

Control Function:

Main wire Switch

Main Part Switch

Remote Switch

System safety Protection

Phase protection

Timmer Switch

Over-heating protection

Over-voltage protection

Over-current Protection

Phase Fail Protection

Power can programme

Display function:

Temperature Checking Display

Time setting Display

Working Model Display

Working state display

Failure inquire display

120KW PWHT Machine

PWHT Machine Air Cooled

120KW Induction Heat Treatment Equipment

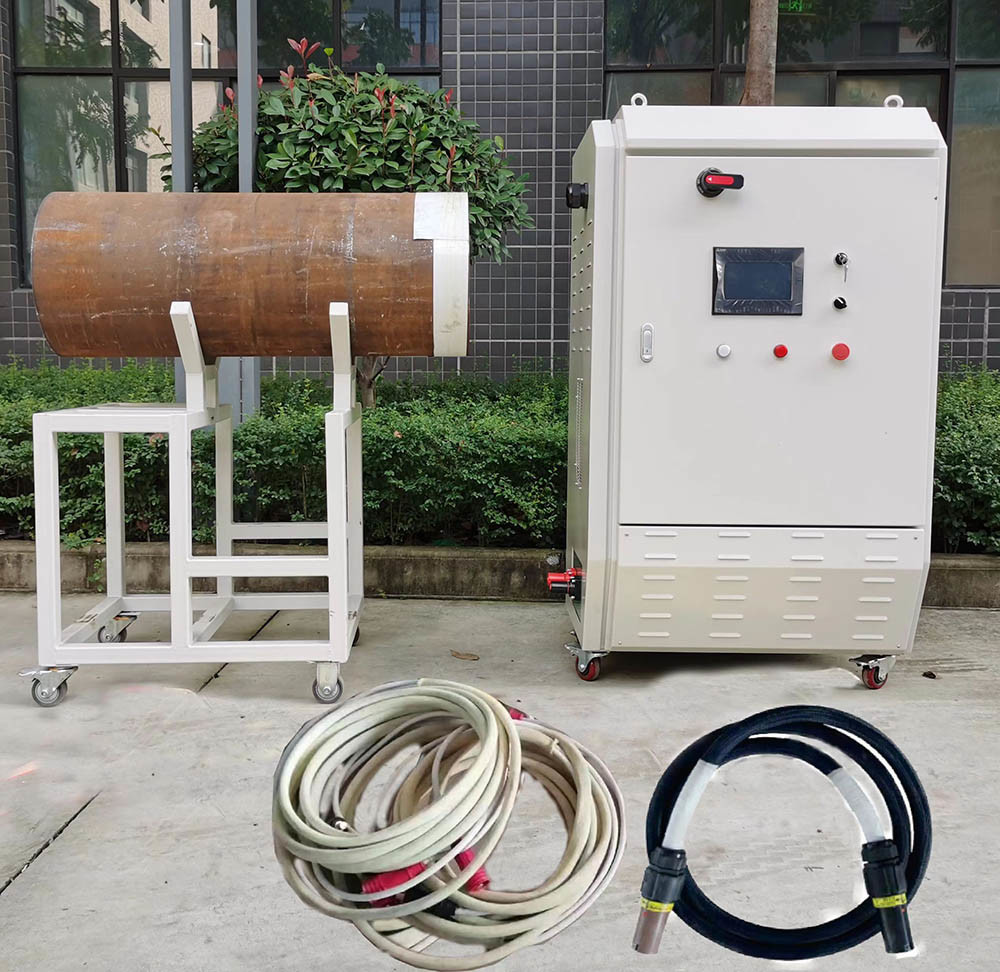

120KW PWHT Machine Air Cooled Induction Heat Treatment Equipment Images
