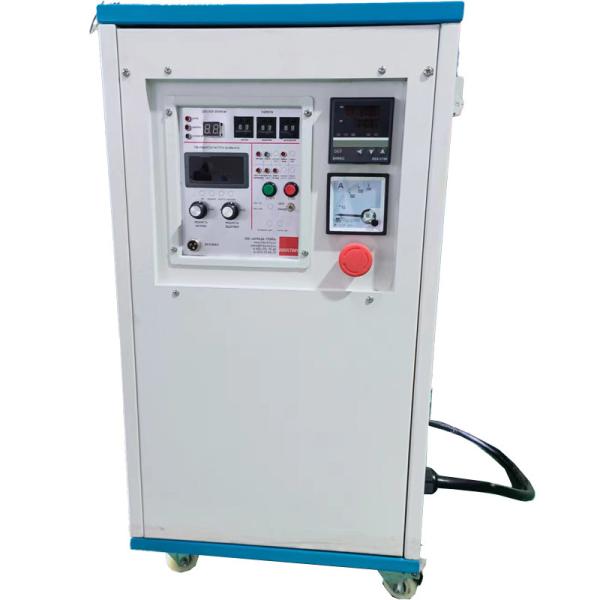

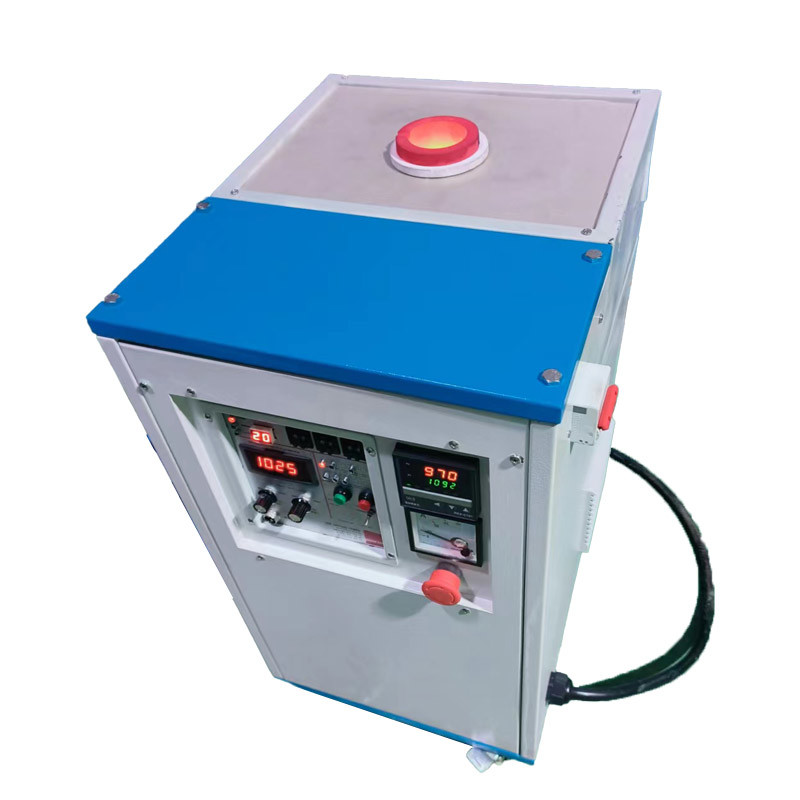

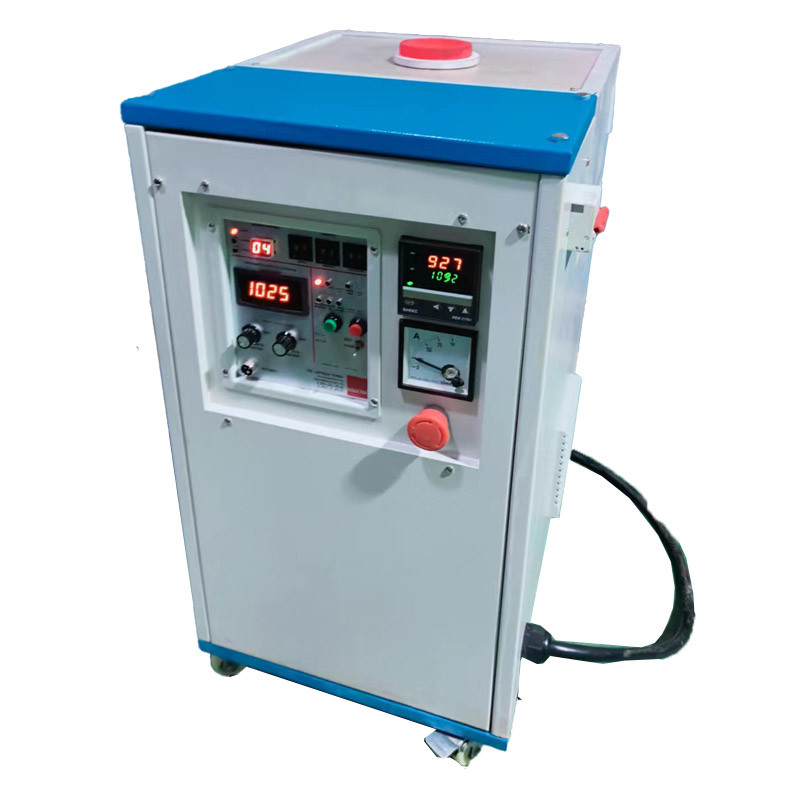

Precious Metal Induction Smelting Furnace Application In Gold / Silver / Zinc

Induction Smelting furnace equipment application in Gold, silver, zinc and other precious metal:

Features:

• Product Name: Induction Melting Furnace Equipment
• Max Temperature: 1650℃
• Temperature Control Accuracy: ±1℃
• Cooling Mode: Water Cooling
• Frequency: 30-80KHz
• Induction melting automatic hydraulic steel shell furnace
• 1KG-8KG Quartz and Graphite Crucibles to melting

Technical Parameters:

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
7 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

Type	HF-15AB/15A
Work Power	220V,230V,240V 50-60hz 380V*3Phase
The range of operating voltage	200-260VAC 340-430V
Output power	15KW
Input current	36A
Fluctuating frequency	30-100khz
Timing (Heat time,Retain time,Cool time)	1-99S
The flow rate of cooling water	0.15 Mpa 7.6L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	36Kg
Size	Main Parts:640*280*550mm

Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.

PAKAGE:

Precious Metal Induction Smelting Furnace

380V Induction Smelting Furnace

15KW Induction Melting Furnace

Precious Metal Induction Smelting Furnace Application In Gold / Silver / Zinc Images
