Medium Frequency Induction Smelting Furnace Systerm With 500KG / 1 Ton Capacity

ANew China Manufacturer Supply Medium Frequency Induction Smelting Furnace Systerm with 500KG , 1Ton Melting furnace:

Product Advantages:

1. The equipment adopts IGBT series resonant circuit, which has very good starting performance and completely solves the problem of difficult starting of silicon controlled medium frequency.
2. The equipment hardly generates high harmonics and rarely pollutes the network, while the transformer and switch do not generate heat and do not interfere with the operation of other electronic equipment in the factory.
3. High reliability, the main components are all produced by world famous factories.
4. IGBT series resonant medium frequency power supply is more energy saving and power saving. 0.5 tons 300 kw medium frequency furnace consumes about 650 degrees/ton, 0.75 tons-3 tons medium frequency furnace consumes about 600 degrees/ton, which is about 28% more energy saving than silicon controlled medium frequency furnace.
5. The product water circulation system adopts water-water exchange bellows exchanger: the inner circulation is distilled water, long-term use, each water circuit in the equipment is not scaled and not blocked, reducing failure and saving maintenance costs.
6. The product can always maintain constant power output in the melting process, it is different from the silicon controlled intermediate frequency power regulation mode, the silicon controlled intermediate frequency is by adjusting the DC output voltage, while the product is to adjust the frequency, it is not affected by the amount of furnace material, maintain constant power output in the whole melting process, especially when producing stainless steel, copper, aluminium and other non-conducting materials, it shows its superiority, fast melting speed, less burn loss of furnace material elements, and better energy saving. Energy-saving effect is better, reducing the casting cost.
7. Easy to use and maintain: IGBT medium frequency power supply circuit structure is simple, complete protection design, with complete fault display function, can quickly find the fault point, easy to maintain.

Applications :

Melting furnaces are mainly used for heating, melting, warming and holding ferrous or non-ferrous metals and alloy materials such as steel, copper, aluminium, zinc, tin, nickel and stainless steel. Mostly used in the foundry industry and metal purification.

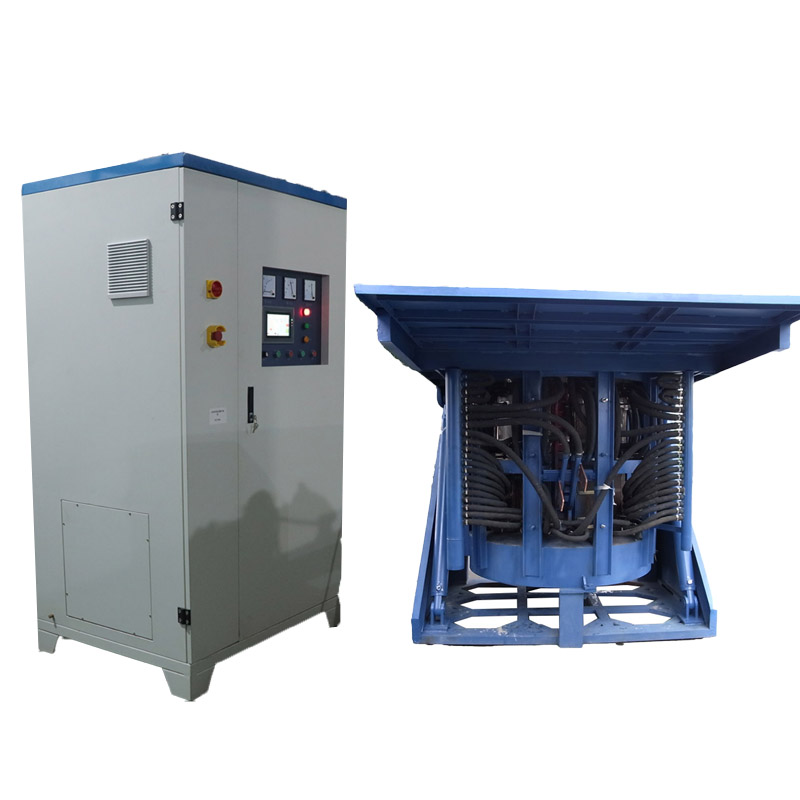

Equipment components:
Medium frequency power supply control cabinet: with neat and exquisite appearance, and the IGBT module adopts Infineon;

Melting furnace body: designed on demand, the small melting furnace body adopts the combination of high quality insulating material and aluminum plate, the large melting furnace body adopts cast aluminum shell or steel shell, beautiful and exquisite;
Capacitor group: using domestic well-known brands, quality assurance;

Electric furnace control system: using imported chips from the United States, with automatic constant power adjustment, energy saving and power saving, no pollution, etc;

Induction ring: high quality square copper tube professionally wound and made to order (number of turns, inner diameter, height, etc.)

Water-cooled cable: professionally made to order according to equipment requirements (cross-sectional area, length, joint size, etc.)

Tilting mode: manual tilting; electric tilting; hydraulic tilting;

Technical specifications:

Copper Induction Smelting Furnace

500KG Induction Smelting Furnace

1 Ton Induction Melting Furnace

Medium Frequency Induction Smelting Furnace Systerm With 500KG / 1 Ton Capacity Images
