Water Cooling Bolt Expansion Equipment For Heating Area Depending On Client Requirements

Product Description:

Induction heating is an efficient process used to bond, harden, or shape metals and other conductive materials. It offers the advantages of speed, consistency, control, and energy efficiency, making it a popular choice for modern manufacturing processes.

The principles of induction heating have been known and utilized in manufacturing since the 1920s. During World War II, it quickly developed to meet the urgent need for a fast and reliable method to harden metal parts for engines.

In recent years, the focus on lean manufacturing techniques and improved quality control has led to a renewed interest in induction technology. This, coupled with the development of precisely controlled and all-solid-state induction power supplies, has further enhanced its application in various industries.

Induction heating works on the principles of electromagnetic induction. When an alternating electrical current is passed through the primary of a transformer, it creates an alternating magnetic field. According to Faraday's Law , if a secondary component is placed within the magnetic field, it will generate an electric current.

In a typical induction heating setup, an AC current is sent through an inductor, usually a copper coil, by a power supply. The workpiece, or the item to be heated, is then placed within the inductor. The inductor acts as the primary while the workpiece becomes the secondary. As the metal part enters the magnetic field, circulating eddy currents are induced within it. These currents flow against the material's electrical resistance, generating heat in the process.

Features:

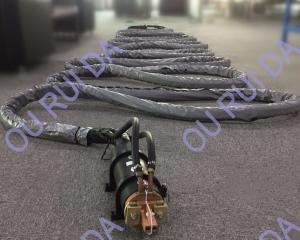

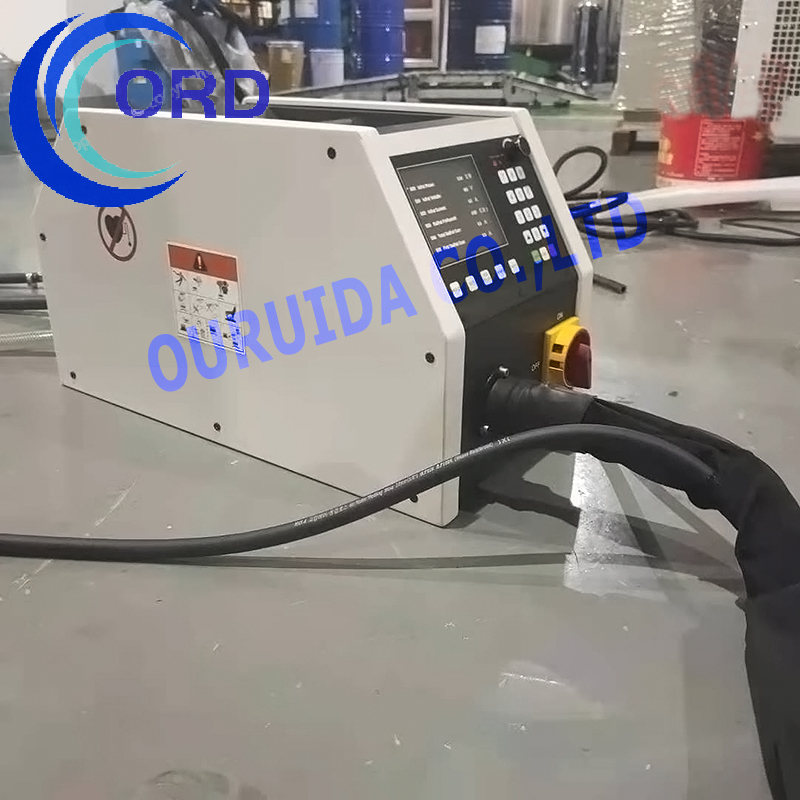

• Product Name: Portable Induction Heating Machine
• Temperature Range: 50-1600℃
• Test reports: Provided
• Material: Various Metals Or Fittings
• Transformer: Handheld, Protable, Mobile
• Heating Depth: Depending On Client Requirements

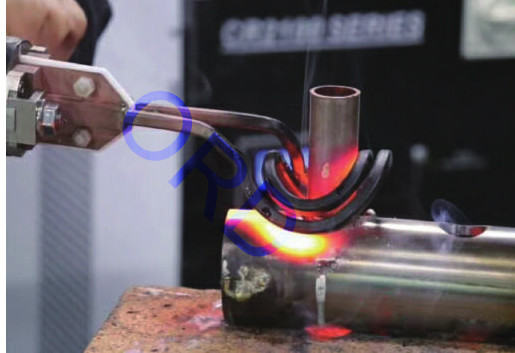

• Mobile welding equipment for copper tubes
• Bolt expansion equipment
• Induction heating bolts machine

Technical Parameters:

Applications:

Customization:

Brand Name: Handheld Induction Heating Machine

Model Number: DSP-50KW

Place of Origin: China

Certification: CE, SGS, ROHS, ISO, EU

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Export wooden box package

Delivery Time: 1-5 days

Payment Terms: T/T

Supply Ability: 10000 units per month

Heating Speed: Fast

Transformer: Handheld, Portable, Mobile

Voltage: 340V-480V

Power: 80KW

Heating Area: Depending on client requirements

Key Features:

• Handheld and portable design for easy operation and mobility
• Fast heating speed for efficient and time-saving use
• Customizable heating coils to meet specific client requirements
• CE, SGS, ROHS, ISO, and EU certifications for quality assurance
• Minimum order quantity of 1 unit for flexible purchasing options
• Negotiable price for cost-effectiveness
• Export wooden box package for safe transportation
• 1-5 days delivery time for prompt order fulfillment
• Payment terms of T/T for convenient transaction
• Supply ability of 10000 units per month for continuous availability

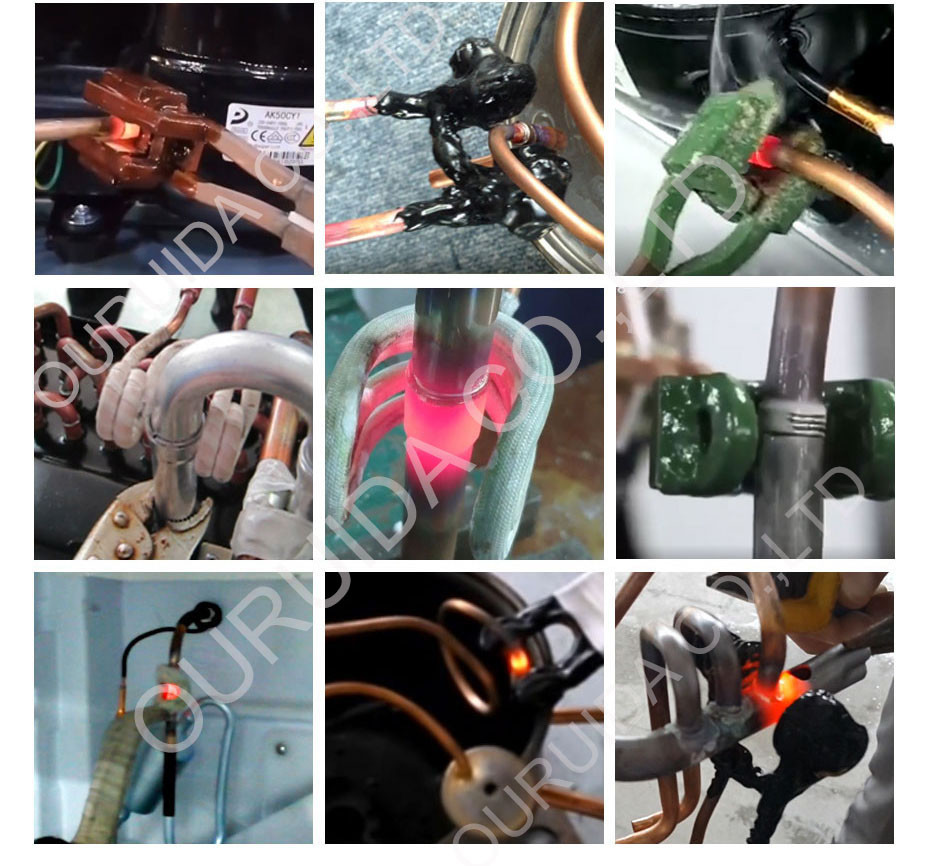

• Suitable for various applications such as bolt expansion and annealing
• Transformer designed for handheld, portable, and mobile use
• Wide voltage range of 340V-480V for versatile use
• High power output of 50KW for efficient heating
• Heating area can be adjusted depending on client requirements

Packing and Shipping:

The Portable Induction Heating Machine is carefully packaged to ensure safe and secure delivery to our customers. The following steps are taken to protect the product during shipping:

1. The machine is placed in a sturdy cardboard box with sufficient padding to prevent any movement during transit.
2. All fragile components are wrapped in bubble wrap or foam to provide extra protection.
3. The box is sealed with strong adhesive tape to prevent any accidental opening.
4. The box is labeled with the product name, model number, and handling instructions for the shipping company.

For international shipping, the product is also packaged in compliance with all relevant customs regulations.

Our standard shipping method is through reliable and trusted couriers such as DHL, FedEx, and UPS. Customers can also request for a specific shipping company of their choice.

Once the product is shipped, customers will receive a tracking number to monitor the delivery status of their order.

We take great care to ensure that our Portable Induction Heating Machine reaches our customers in perfect condition. However, in case of any damage during shipping, customers can contact us for a replacement or refund.

Thank you for choosing our Portable Induction Heating Machine. We hope it serves you well!
